NOVATOP SOLID

NOVATOP SOLID are large format solid components made of cross laminated solid wood (CLT – cross laminated timber) that provide a solution for especially bearing and non-bearing walls and partitions, or possibly ceilings.

SOLID panels are manufactured from spruce lamellas put together in layers and glued in all directions. The number of layers can differ and determines the final thickness of the panel. The timber for the production is dried to a moisture content of about 8%, which ensures high stability of components and prevents them from cracking. Preparation of routes for distribution according to the project in the production process. Certified by ETA.

Wood: Spruce
Quality: visual (B), no-visual (C)

Standard formats (mm): 6000 x 2500, 6000 x 2100, 5000 x 2500, 5000 x 2100 (max. 12 x 2,95 m)
Other formats are based on the following basic formats.
Thicknesses for walls: 62, 84 (42/42), 124 (62/62) mm
Thicknesses for ceilings: 81 (27/27/27), 84 (42/42), 116 (27/62/27) mm

INNOVATIONS

SOLID with veneer
Surface finishes 2 in 1 – protective coating and final surface finish of the interior

Application

• bearing and non-bearing walls, partitions
• ceiling and roof bases
• solid roof and floor panels

Advantages

• large area panels of up to 12 x 2.95 m
• dimensionally stable and firm
• exact machining according to the project
• visual quality in the interior
• installations milled in inside the panels in the production stage

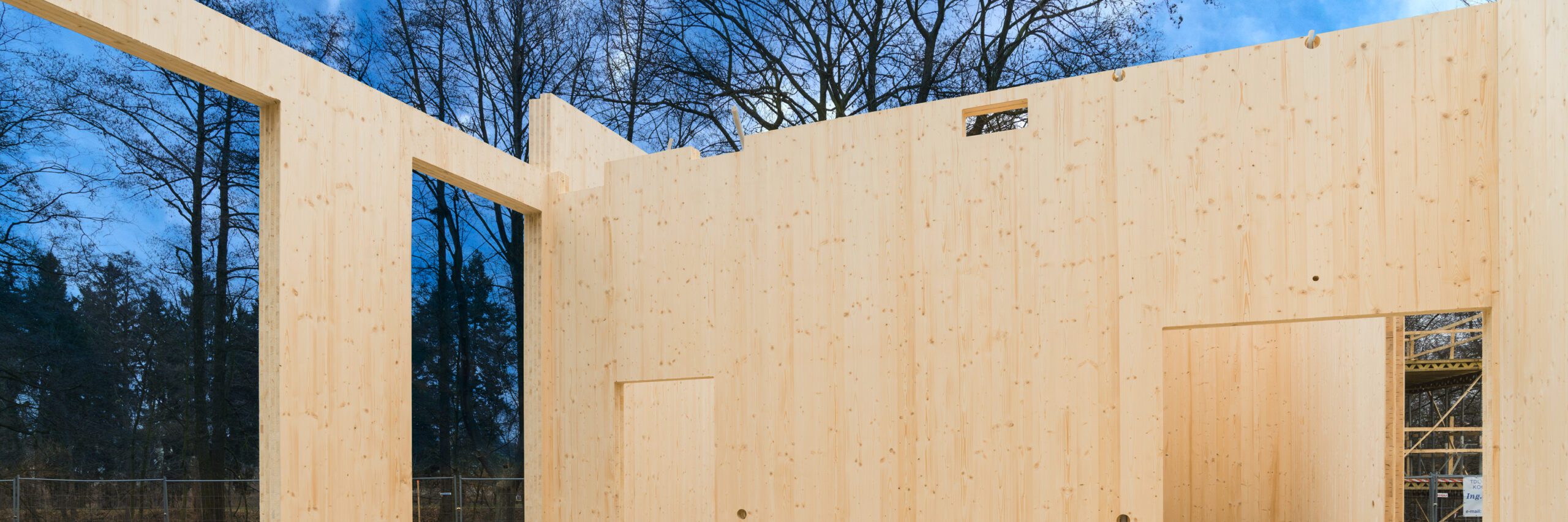

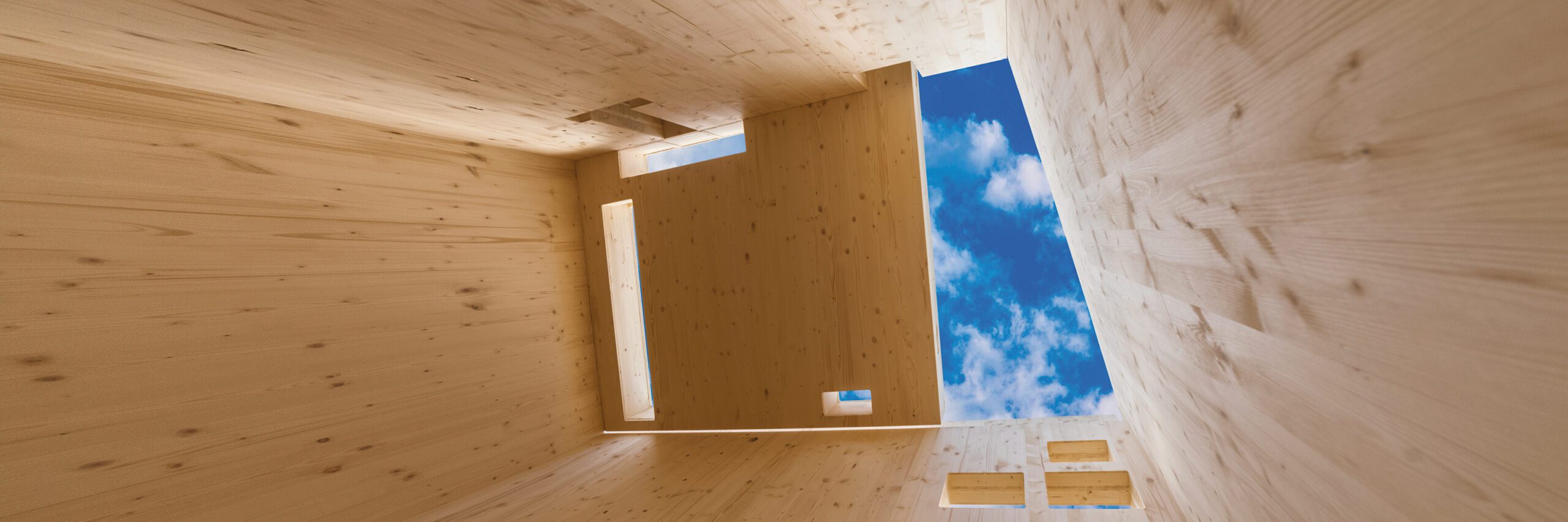

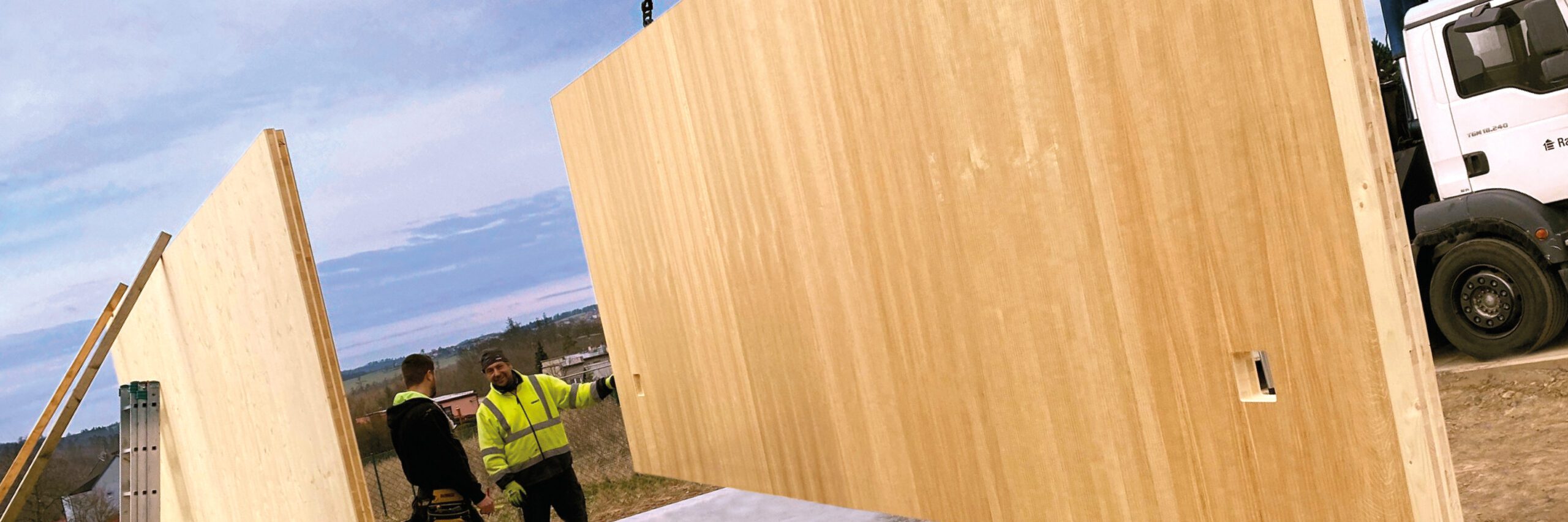

Application – photo gallery

The downloads section includes:

Technical documentation – SOLID
Machining possibilities
Planning Documents
Assembly instructions
Structural details: Wall joints and applications
Tests and certificates
